Description >>
The range of LiOu Instruments MC-III current transformers offers wide system current
ratings, apertures, bus bar and case sizes to suit every application. Manufactured to meet
EN60044 the range benefits include ratio rating from 100A to 6300A, accuracy up to
Class 0.5, integral terminal cover for safety and multiple mounting options.
Application >>
• Data logging • Recording • Power monitoring • Energy management • Alternative energy monitoring • Cost allocation
Features >>
• Frequency Range: 50-60Hz
• Over Load withstand: 1.2 x rated current continuously
• AC isolation resistance: 3KV for 60s
• Rigid housing case with UL® 94V-0 polycarbonate
• Safety standard: IEC/EN60044-1
• Nominal phase angle error and
Nominal linearity error: Conform IEC61869-2
ConformIEC60044-1
• Max. operation voltage: AC660V
• Thermal Insulation Class: Class B
• IP Protection Class: IP20B
• Humidity: Up to 95%RH (Non-condensing)

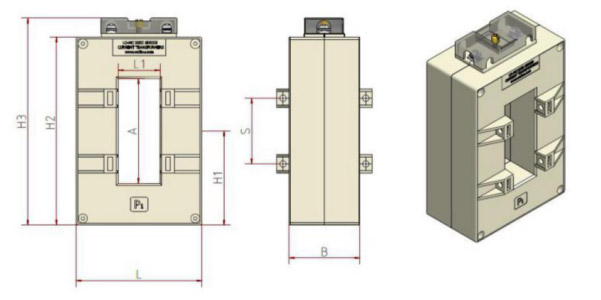

Mechanical Specification >>
| P/N |
A |
L1 |
L |
B |
H3 |
H2 |
H1 |
S |
| LO-MC50III |
52 |
16 |
75 |
56.4 |
120 |
105 |
52.5 |
- |
| LO-MC60III |
62 |
33 |
100 |
56 |
140 |
125 |
62.5 |
- |
| LO-MC80III |
83 |
33 |
100 |
56 |
164 |
149 |
74.5 |
51 |
| LO-MC100III |
103 |
33 |
105 |
56 |
190 |
175 |
87.5 |
65 |
| LO-MC120III |
123 |
53 |
125 |
56 |
215 |
200 |
100 |
77 |
| LO-MC130III |
132 |
57 |
130 |
54 |
220 |
205 |
102.5 |
50/79 |

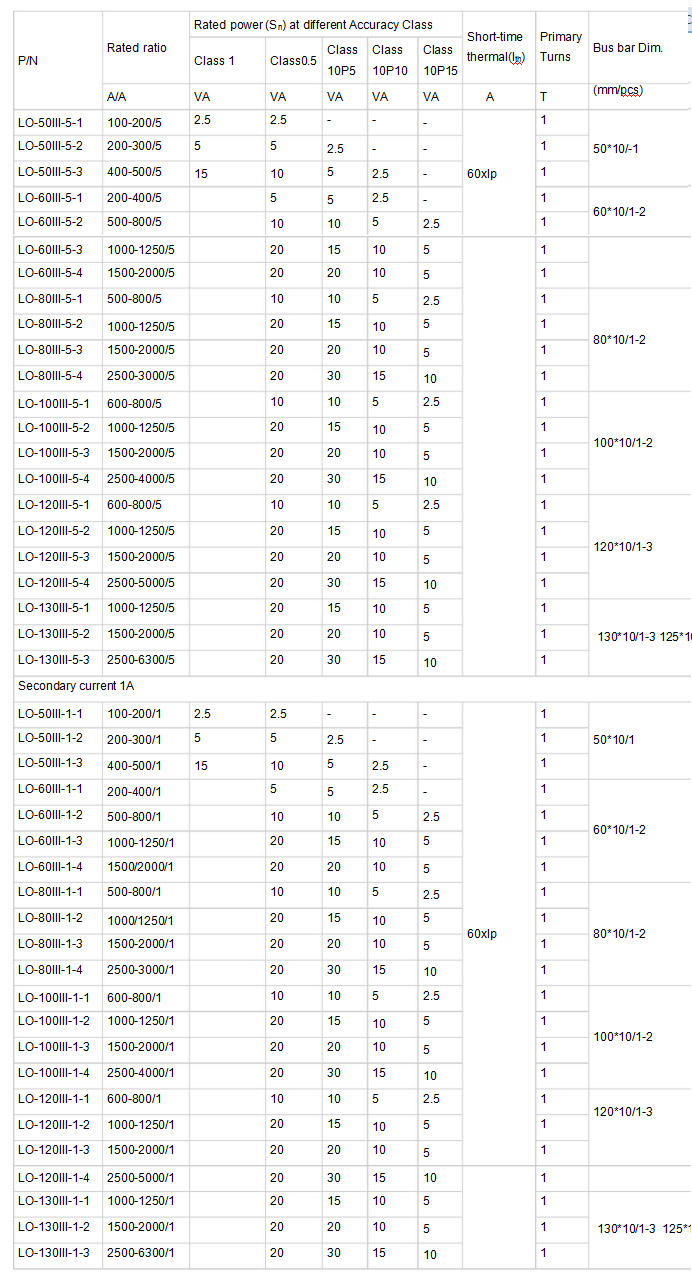

Electric specification >>

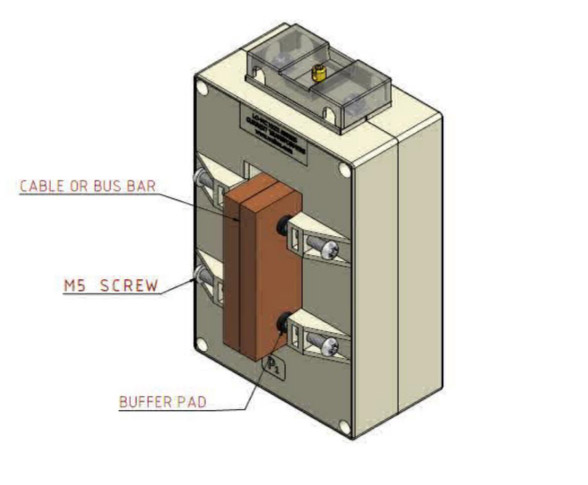

 Installation >>
 |
]
