LO-56XXC

Description >>

The LO-GP5600 series of current sense transformers are designed to monitor AC currents. They can be used for high frequency current sensing, for example in switched-mode power supplies, motor control and electronic lighting ballasts.

Features >>

RoHS compliant
50, 100, 200 & 300 Turn variants
Primary current rating 10A
20kHz-200kHz frequency range
Centre tapped variants available

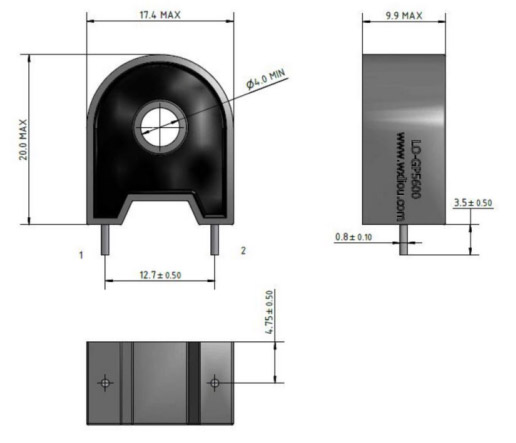

Mechanical Specification >>

SELECTION GUIDE
Order Code Number of
Turns
Inductance Min. DC Resistance

Terminating Resistance to
Produce 1VOUT/1AIN

±1 Turn Pins 1&3 Pins 1&3, Ω

LO-56050C

50

4.5mH @1V, 50kHz

0.133 - 0.199

50
LO-56100C 100 18mH @1V, 50kHz 0.93 - 1.40 100
LO-56200C 200 72mH @1V, 10kHz 1.87 - 2.81 200
LO-56300C 300 160mH @1V, 10kHz 5.73 - 8.59 300
LO-56T100C 100CT 18mH @1V, 50kHz 0.93 - 1.40 100
LO-56T200C 200CT 72mH @1V, 10kHz 1.87 - 2.81 200
LO-56T300C 300CT 160mH @1V, 10kHz 5.73 - 8.59 300

ABSOLUTE MAXIMUM RATINGS
Operating free air temperature range -40°C to 85°C
Storage temperature range -40°C to 100°C
SOLDERING INFORMATION
Peak wave solder temperature 300ºC for 10Seconds
Pin finish Tin

Technical Notes >>

ISOLATION VOLTAGE
All LO-5600 current sense transformers are tested at 500Vdc for a minimum of 1 second during our standard test procedure.
In addition, as part of our qualification process carried out prior to product launch, the 5600 series demonstrated no isolation breakdown at 10kVdc or 6kVac with a bare conductor as the primary winding. Whilst this does not imply these parts are designed for environments where such high voltages may be present, it does demonstrate the level of isolation voltage these products are able to withstand. Full mains safety isolation can be achieved with appropriately insulated wire on the primary winding.
